Title:
FS-7000-D-20"--1 Speed Gearbox
$36,554.00

Description

Free Shipping 239-357-1853 Craig.

Husqvarna FS 7000-D large, deep-cutting walk-behind flat saw. Saw blade not included.

Large jobs such as airports, highways, large service work and other applications where production is a concern.
Mid-size and smaller jobs that require high production rates

The modern FS 7000 D is our most powerful diesel walk-behind flat saw with low emissions, developed to be compliant with Tier 4 / Stage IIIB regulations. Ideal for asphalt and concrete cutting up to 411 mm deep. Suitable for mid-sized road work, service work and smaller jobs that require high production rates. Highly versatile thanks to its high output, compact size and good maneuvrability. Equipped with an intuitive and ergonomic digital control panel with all important functions easy to monitor.

Features:

Powerful and fuel-efficient: Common-rail diesel engine with low emissions.

Intuitive and ergonomic control panel: All important functions are easy to reach and monitor, such as blade rpm, forward speed, electronic tracking, depth gauge, belt and pulley ratios, runtime and service minder.

Easy adjustment of tracking for straight cuts: Electric tracking system includes position indicator on the display, it can automatically return to neutral position and has the ability to memorise last used setting.

Low emissions: Equipped with diesel particle filter (DPF). Complies with Stage IIIB / Tier 4 regulations.

Applications:

Large jobs such as airports, highways, large service work and other applications where production is a concern.
Mid-size and smaller jobs that require high production rates



Benefits:

Tier 4 compliant engine meets current EPA regulations.
Power transmission system transmits more power to the bladeshaft with optimum torque.

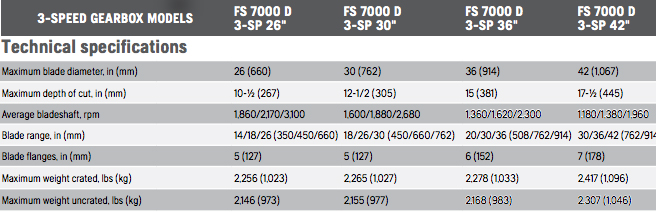

3-speed, right angle gearbox models enable different blade sizes to run at their optimal performance level without changing pulleys or belts.
Digital display dashboard features all important functions and is easy to monitor. Maintenance intervals can be set for service reminders.
Optional: E-track system with an integrated reset function in the display makes it easier to produce a straight cut.

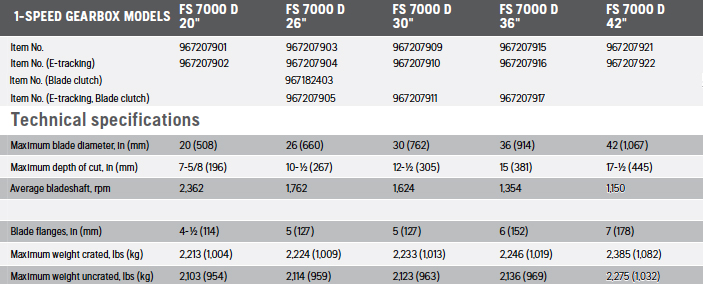

Specifications:



Common Specifications



Engine Specifications: Deutz C4D155.4
Maximum Power, hp (kW): 74 (55)
Power at bladeshaft, hp (kW):  66 (48)
Arbor Size, in (mm): 1 (25)
Bladeshaft Diameter, in (mm): 2 (51)
Cylinders/Cycle: 4/4
Fuel Capacity, gal (l):  10.6 (40)
Air Filter:
Dual element radial seal with rain hood.
Starter: Electric.
Engine Cooling:  Liquid/air.
Axle Front/Rear, in (mm): 1 (25)
Wheels Front, in (mm): 8 x 3 (203 x 76)
Wheels Rear, in (mm): 10 x 3 (254 x 76)
Blade Guard Type: Slip-on.
Number of Belts: 16 (set of 4, banded belts)
Blade Depth Control: Electrohydraulic pump
Dimensions Uncrated, Pointer and Blade Guard Up, Handles In, in (mm) L x W x H: 67 x 38 x 57 (1,701 x 965 x 1,448)
Displacement, cu in (l): 178 (2.92)
Bore/Stroke, in (mm): 3.6/4.3 (91/109)
Oil Capacity, qt (l): 9 (8.5)
Handlebar Adjustment: Variable position..
Transmission Type: Balanced dual motor hydrostatic drive.
Transmission Speeds, fpm: 0-300
Electric Tracking (optional): Electric switch operated.

Payment also can be made over the phone via Visa, MasterCard, American Express or Discover by calling 239-357-1853 Craig (Contractors Store)
